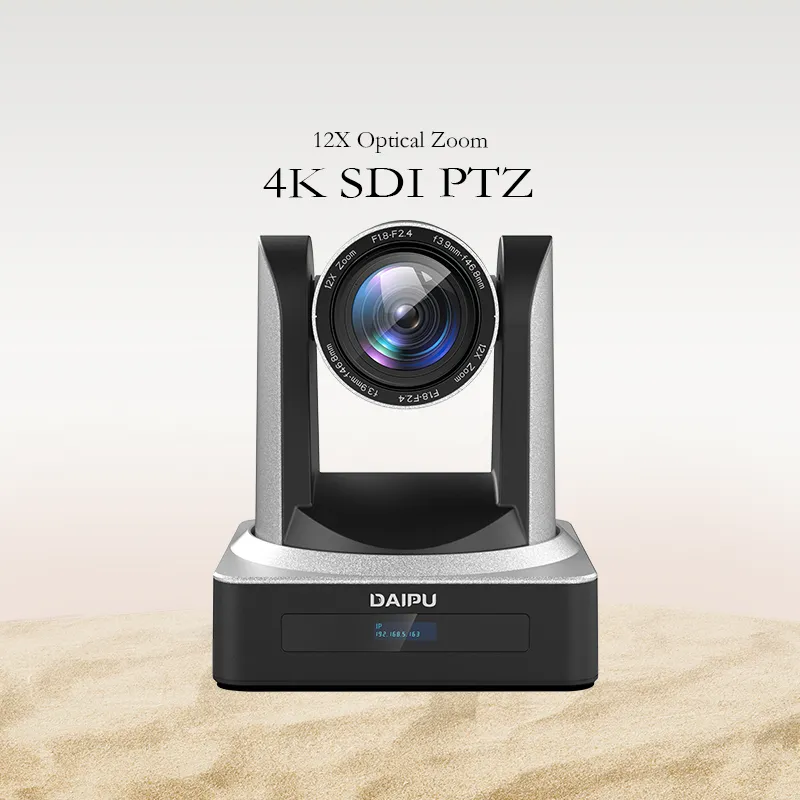

Full HD 4K PTZ Camera

The VX60 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

[Super High-definition Image]

Equipped with a 1/2.8-inch 8.42-megapixel high-quality image sensor, the maximum resolution can reach 3840×2160, with an output frame rate of up to 60 frames per second.

[Multiple Optical Zoom Lens]

12x, 20x and 30x optical zoom lens available, and the cutting-edge focus technology to enable fast, stable, and accurate auto focus.

[AI Dynamic Tracking]

Equipped with advanced automatic tracking and framing technology, integrating facial and human shape recognition algorithms, providing tracking features for environments such as conference rooms, classrooms, and churches.

Model	VX60-12	VX60-20	VX60-30
4K PTZ Camera
Optical Zoom	12X f=4.1～49.2mm	20X f＝5.05～91.49mm	30X f＝5.2～148.4mm
Viewing Angle	6.72°（N） 70.4°（W）	3.81°（N） 60.04°（W）	2.14°（N） 58.1°（W）
Image Sensor	1/2.8 Inch High Quality CMOS Sensor
Effective Pixel	8.42M, 16: 9
Video Signal	HDMI/SDI/USB3.0/LAN
	HDMI: 3840×2160/1920x1080P60/59.94/50/30/29.97/25;720P60/59.94/50 SDI: 1920x1080P60/59.94/50/30/29.97/25;1920x1080I60/50/59.94; 1280x720P60/59.94/ 50 USB: YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800x 448/640×480/640×360/480×270/320x180P30/25/20/15/10/5 H264/H265/MJPG: 3840×2160/1920×1080/1600×896/1280×720/1024×576/960×540/ 800×600/800×448/720×576/720×480/640×480/640×360/480×270/352×288/320×240@60/30/25/20/15/10/5fps LAN: Master Code Stream: H264/H265: 3840×2160/2592×1944/2304×1296/1920×1080/1280×720@60/30/25/20/15/ 10/5fps; Subcode Stream: H264/H265: 1920×1080/1280×720/640×360/640×480/320×240/320×180@60/30/25/20/ 15/10/5fps;
	UVC (Video Communication Protocol), UAC (Audio Communication Protocol)
Digital Zoom	16X

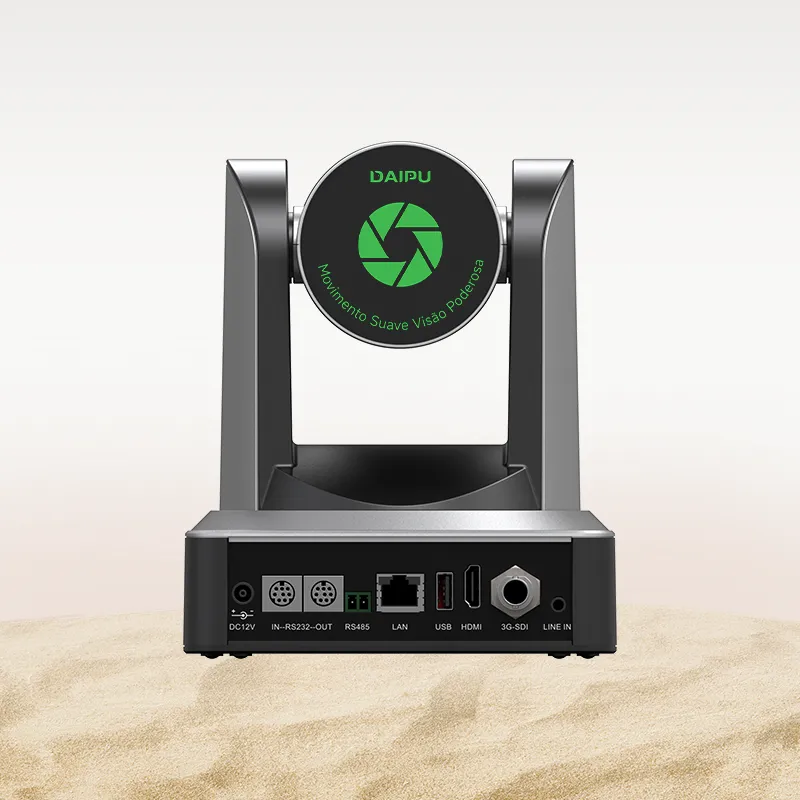

Interface	HDMI、SDI、LAN（POE+）、USB3.0、A-IN、RS232-IN、RS232-OUT、RS485、DC12V Power Supply
Accessory	Power Adapter, RS232 Cable, Remote Control, User Manual
