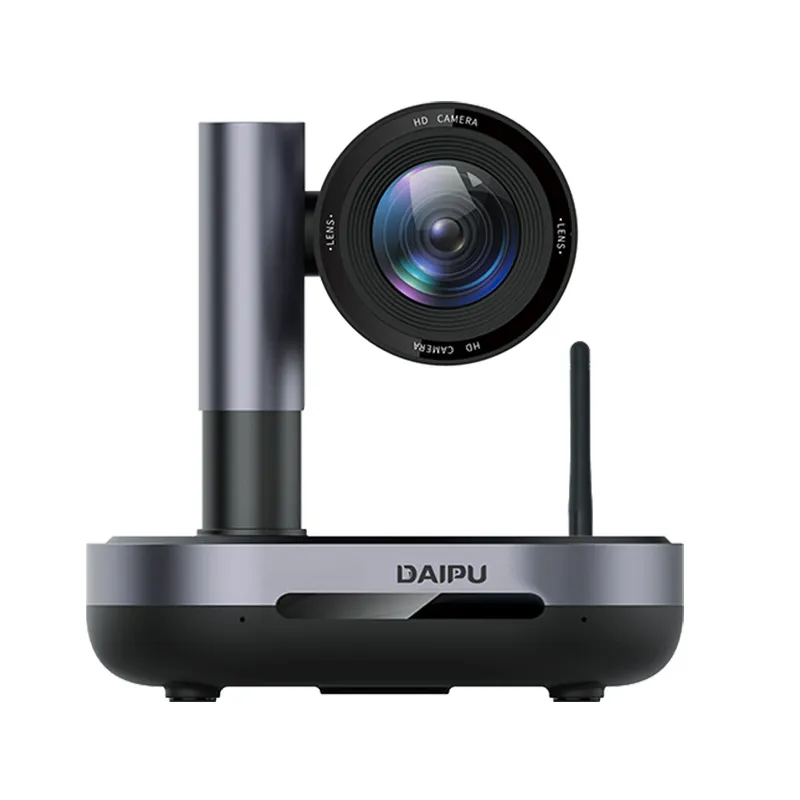

This is a high definition 4K conference camera for corporate, education and telemedicine applications. With a variety of optical zooms and 4K resolution, coupled with superior color reproduction, the camera produces stunning live footage that captures high-quality, colorful video images in corporate boardrooms, classrooms, training centers, and medical offices.

The camera with advanced control algorithms can achieve accurate positioning, smooth and quiet PTZ control, the camera’s wide-angle lens can easily cover all the people in the room during the video conference, configured with 255 presets, so that it can easily and quickly reproduce a clear picture, and will not cause any interference to the speaker or audience.

For easy control and viewing, it can also automatically receive VISCA commands and PELCO-P/D protocol commands.

Product Highlight

• Precise Positioning, Smooth and Quiet Control Algorithm PTZ Control

Precision motor drive with advanced control algorithms for very quiet, smooth, and steady operation, moving accurately and quickly to the designated position with a wide range of shots.

• True 4K HD Images

Adopting a high quality “Exmor R” CMOS Sensor with 1/2.5-inch, 8.51 million effective pixels, the camera realizes high-quality images at an ultra-high resolution of 3840×2160. While ensuring ultra-high definition, it focuses on satisfying the need for smoothness of the image.

• Low Noise and High Signal-to-Noise Ratio

2D and 3D noise reduction algorithms based on motion estimation are applied, and a new generation of low-noise sensors is used for effective noise reduction.

• Support Multiple Optical Lens Matching

3X optical zoom, 105° horizontal viewing angle, 12x digital zoom

• 4KP30 UHD USB 3.0 Video Output

Support 4KP30/25,1080P30/25,720P30/25 and other HD video formats.

• 4KP30 UHD Wireless Video Output

Support 4KP30/25,1080P30/25,720P30/25 and other HD video formats.

• Support TF Card Recording Function

Support TF card recording function, support multiple time period recording, support audio recording.

• 255 Position Presets

255 positions can be pre-set via the serial port, including pan, tilt and zoom for presetting, and the preset data can be saved even when the camera is powered down and turned off.

• Multi-Function Remote Control

Equipped with an easy-to-operate remote control, in addition to basic settings and control of pan, tilt, zoom, etc., you can also use the remote control to call up the menu to set the camera’s relevant parameters.

• OSD Menu Functions in English and Chinese

Rich OSD menu, available remote control，control Chinese and English OSD menu.

• Batteries (optional) Batteries support up to 5 hours of uninterrupted operation

Applications

Conference system, telemedicine, distance learning, etc.

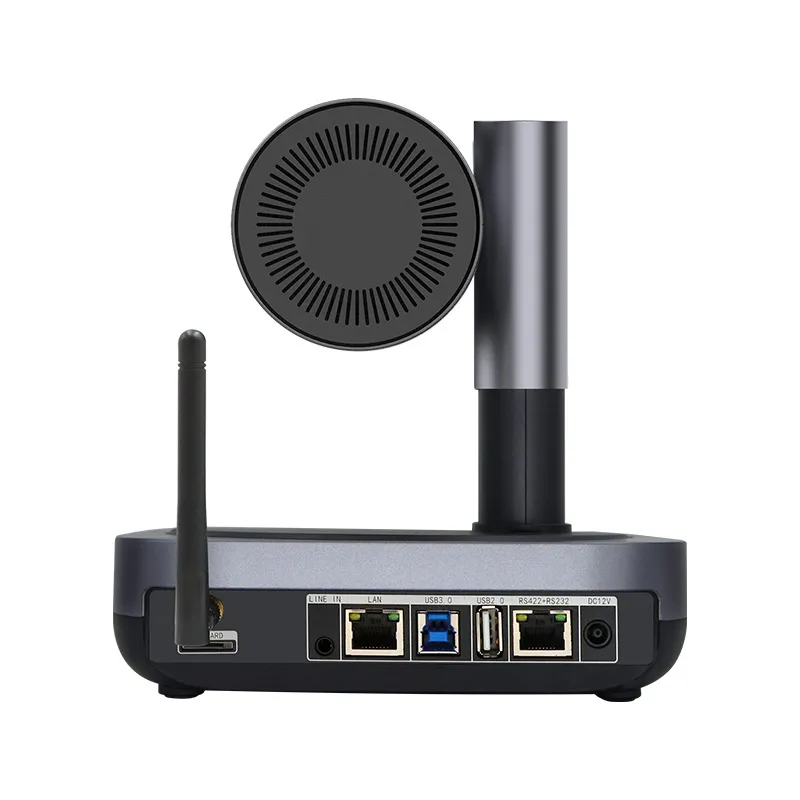

Camera Interface Functions

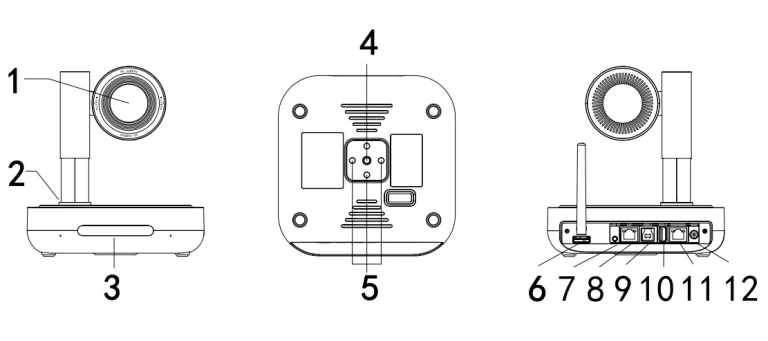

Interface	1.Lens 6.TF Card Interface 11.RS232&RS422control port 2.Base 7.3.5mmAUDIO IN 12.DC power port 3.Remote Control Receiver, Power Indicator 8.IP port 4. Mounting Screw Hole 9.USB3.0 port 5.Mounting Positioning Holes 10.USB2.0 port

Camera
Signal System		3840×2160P30/25,1080P60/50/30/25 、720P60/50
Sensor		1/2.5-inch high-quality CMOS sensor, 8.51 million pixels
Scanning Method		line by line (translation, scanning etc)
Digital Zoom		12x
Minimum Illumination		Supports ultra-low light：0.1Lux@F1.6（color），0.01Lux@F1.6（black and white）
Shutter		1/30s ~ 1/10000s
White Balance		Automatic, Indoor, Outdoor, Manual
Backlight Compensation		Supported
DNR		2D&3D
Signal-to-Noise Ratio		≥52dB
Horizontal Field of View		3x:  horizontal：52º(wide)～105º(far)，vertically：68º(wide)～4.9º(far)，focal length：2.38mm～7mm 10x: horizontal：55º(wide)～5.5º(far)，vertically：31.5º(wide)～3.2º(far)，focal length：5.7mm～57mm
Horizontal Rotation Range		±180º
Vertical Rotation Range		-90° ~ +90°
Horizontal Rotation Speed Range		1 º/s ~ 100 º/s
Vertical Rotation Speed Range		1 º/s ~ 60 º/s
Horizontal and Vertical Flip		Supported
Number of Preset Positions		255
Preset Position Accuracy		±0.1°
Input/Output Interfaces
Video Interface	USB3.0	Supports USB 3.0 video output, with a maximum resolution of 4KP30
	TF Card	Note: Only support models with TF interface. Support TF card recording function, support multiple time period recording, support audio recording.
Communication Interfaces		1* RS-232 IN, maximum distance: 30 meters, supporting VISCA/PELCO-D/PELCO-P protocols 1* RS-422, maximum distance: 1200 meters, supporting VISCA/PELCO-D/PELCO-P protocols
USB3.0 Wireless Receiver		Wireless Transmission 5.8G Receiver
USB Protocol		UVC1.1
Power Interface		JEITA Type（DC IN 12V）HEC3800
General Specifications
Input Voltage		AC110V-AC220V to DC12V/1.5A
Input Current		DC12V(DC11.5-DC12.5V)
Operating Temperature		0℃ to +45℃
Storage Temperature		-10℃ to +60℃
Power Consumption		12W(MAX)
Camera Base Size		Refer to “Installation Dimension Diagram”
Package Dimensions		355mmX270mmX255mm
Weight (Net Weight)）		2KG(1.2KG)
