Description

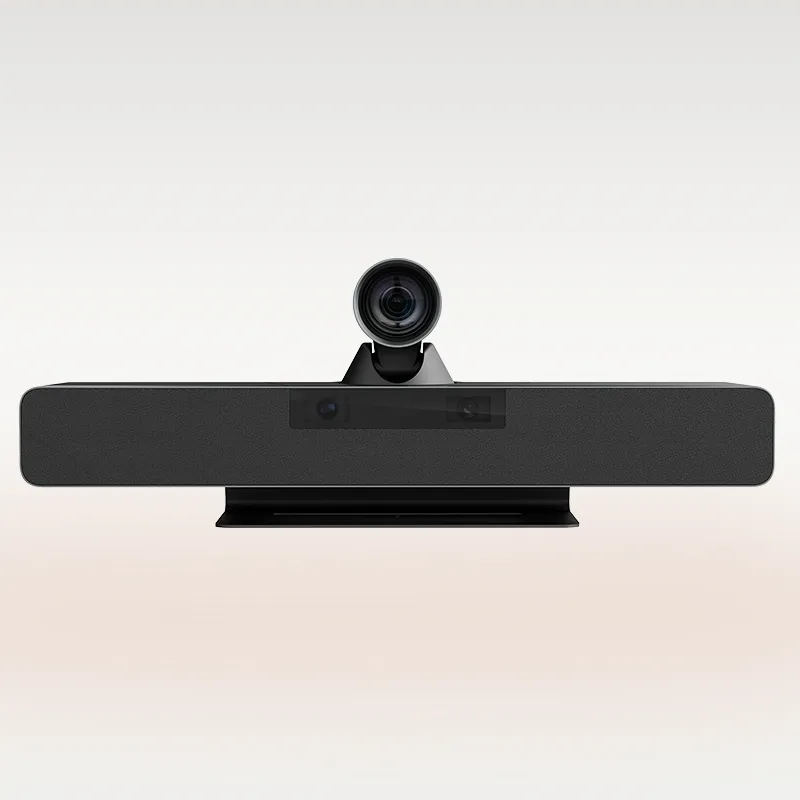

Dual-lens 4K All-in-One USB Video Bar
The VCB2000 features a 4K dual-lens design for small to medium-sized conference rooms, capturing panoramic and close-up shots in meeting rooms. Simplifying wiring setups, it comes with integrated digital microphones and fullrange speakers. Enhanced with AI audio-visual algorithms, it ensures a seamless and convenient experience for remote communication.
Integrated Dual-lens Design
Combining a 4K close-up camera, a 4K panoramic camera, a beamforming microphone, and full-range speakers into one unit,the VCB2000 simplifies video communication by reducing wiring complexity.
4K UHD
The panoramic and close-up cameras utilize a 1/2.5-inch, 8.29-megapixel UHD CMOS sensor. The system delivers 4K resolution at 60 fps, ensuring clear visuals. Additionally, it is backward compatible with
various resolutions, such as 1080P and 720P.
Wide-Angle + Long Zoom
The panoramic camera features a 121° wide-angle lens, capturing a broader range. The close-up camera utilizes a 70.1° wide-angle + 12x optical zoom lens, ensuring clear images and a smooth communication
experience.
AI-assisted Shooting
Equipped with built-in AI algorithms, the device identifies participant positions, adjusting the camera angle for optimal composition automatically. It can focus on the speaker through sound localization,
ensuring precise close-ups.
Smart Gallery with AI Technology
Equipped with algorithms detecting for head, face, and figure, which can adjust the screen layout according to the number of participants,capturing everyone’s facial details clearly. The function can seamlessly
switch the main screen from the overall view to a close-up of the speaker, ensuring smoother communication.
Pickup Range of 6m
Featuring a built-in beamforming microphone and low-distortion lateral beamforming algorithm, it directs the microphone to detect the speaker for balanced sound quality, with a pickup range of 6m.
Full-Range Professional Audio Equipped with full-range speakers, professionally tuned to effectively reduce sound interference, providing natural and authentic sound.
Wireless Screen Mirroring
Built-in Wi-Fi module supports wireless screen mirroring from computers to the device for HDMI local display or USB transmission for remote screen sharing.

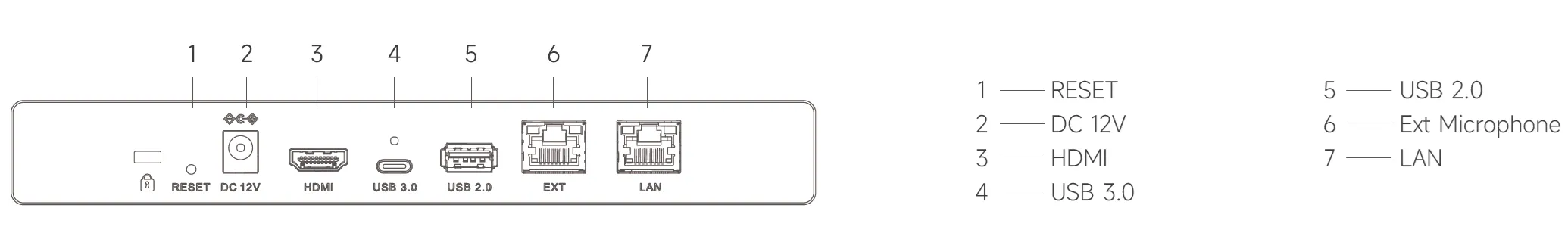

Multiple Interfaces
Supports various interface types, including USB 3.0, HDMI, RJ45,etc. USB 3.0 ensures the transmission of UHD audio and video signals.
Speakerphone
The device can connect to a mobile phone or other devices via Bluetooth, such as a microphone and speaker. It allows the integration of mobile phone calls into video conferences.
Multiple Installation Options
Supports multiple installation methods, including tabletop placement,wall mounting, and TV/display screen mounting. Allow the users to choose installation methods based on their needs.
Camera Specifications
**▼ Close-up Camera Specifications**
| Parameter | Specification |
|---|---|
| Signal System | 4KP60/50/30/25, 1080P60/50/30/25, 720P60/50/30/25, etc. |
| Sensor | 1/2.5 inches, CMOS, Effective Pixels: 8.29 Megapixels |
| Focal Length | 12x, f=4.4 ~ 51.1mm, F1.8~2.6 |
| Horizontal Field of View (HFOV) | 70.1° ~ 7.4° |
| Vertical Field of View (VFOV) | 40.7° ~ 4.2° |
| Pan Angle | ±170° |
| Tilt Angle | -30° ~ +30° |
| Pan Speed | 1.7° ~ 76°/s |
| Tilt Speed | 0.5° ~ 15°/s |
| Image Flip | Support |
| Image Freeze | Support |
| Preset Positions | 255 |
| Preset Accuracy | 0.1° |
| PTZ | Support |
| Auto Focus (AF) | Support |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | Support |
| Signal-to-Noise Ratio (SNR) | ≥55dB |
**▼ Panoramic Camera Specifications**
| Parameter | Specification |
|---|---|
| Signal System | 4KP60/50/30/25, 1080P60/50/30/25, 720P60/50/30/25, etc. |
| Sensor | 1/2.5 inches, CMOS, Effective Pixels: 8.29 Megapixels |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 110° |
| Diagonal Field of View (DFOV) | 121° |
| Vertical Field of View (VFOV) | 75° |
| E-PTZ | Support |
| White Balance | Auto |
| Backlight Compensation | Support |
| Digital Noise Reduction | Support |
| Signal-to-Noise Ratio (SNR) | ≥55dB |
**▼ Audio Features**
| Parameter | Specification |
|---|---|
| Speakers | 2 |
| Microphone Array | 6 analog silicon microphones, beamforming microphones, pickup distance of 8 meters |
| Audio 3A Algorithm | Support |
| Sampling Rate | Microphone: 32 kHz, Speaker: 48 kHz |
