Description

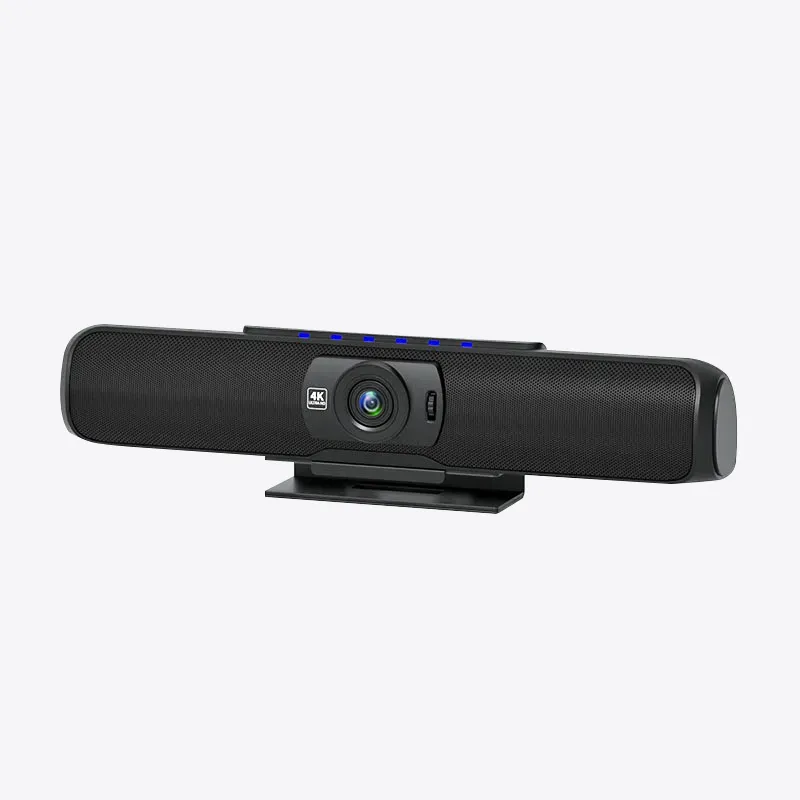

Video and audio conferencing camera with expansion microphones design for small spaces or huddle rooms. 4K UHD lens delivering vivid images makes everyone visible in the seat,

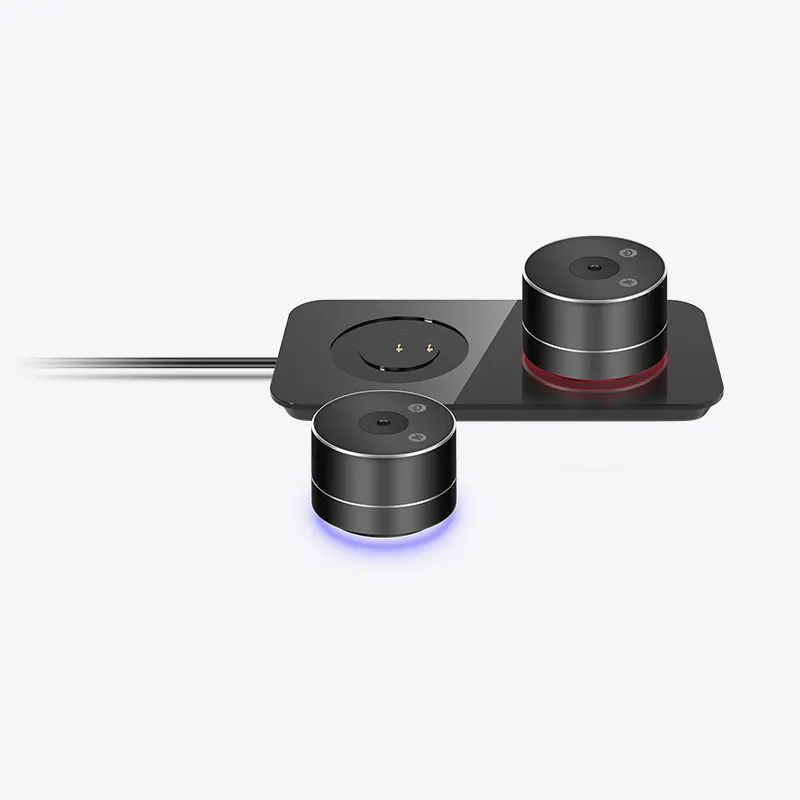

integrated with Microphones and expansion mics connected which is flexible to put on the meeting table. Compact all-in-one design enhances the exceptional experience of audio/video collaboration.
| Category | Item | Specification/Parameter |
|---|---|---|
| Product Name | Audio video All-in-one conference camera | |
| Video | ||
| Image sensor | ||
| Sensor | 1/2.8” SONY CMOS | |
| Effective Pixel | 8 Megapixel | |
| Minimum Illumination | 0.5Lux at F2.0 | |
| White Balance | Auto | |
| Gain control | Auto | |
| SNR | >150db | |
| Lens | ||
| Focus | f=2.26 mm F1.8 | |
| Iris | Fixed | |
| Zoom | Fixed Lens (Support EPTZ, 3x digital zoom) | |
| Horizontal view angle | 105° | |
| AI Function | Support, Auto-Framing | |
| Video output Interface | USB 2.0 | |
| 60fps Support | Support 60fps when 1080P and below resolution in H264/MJPEG output format | |
| Video output Format | MJPEG/H.264: 3840×2160, YUYU:1600×896; 320×240, 352×288, 640×480, 720×576, 2560×1440, 1600×896, 1280×720, 1024×768, 1024×576, 960×540, 848×480, 800×600, 800×448, 640×360, 480×272, 1920×1080 | |
| Built-in Audio | ||
| Built-in Digital Microphone | ||
| Type | Digital silicon Microphone | |
| Sensitivity | Built-in Microphone: -22dBFS | |
| SNR | 60dB | |
| Frequency Response | 100Hz – 16kHz | |
| Echo Cancellation | world-class Echo cancellation technology, echo cancellation time up to 256ms | |
| Noise Cancellation | >12dB | |
| Sampling frequency | Record: 16kHz / Playback: 48kHz | |
| Voice pick up range | 5M | |
| Transmission Model | Wired, USB2.0 (Between all-in-one device and PC) | |
| Wireless, 2.4G (Between all-in-one device and Microphone) | ||
| Power | Speaker power | Double Channels 5W*2 |
| All-in-one Device Power | 9W MAX | |
| Control Mode | Touch button control / remote control | |
| Button function | ON/OFF (Battery Check)、Volume+、volume-、speaker Mute、Microphone Mute、Scene switch | |
| Remote function | Audio: Volume+、Volume-、microphone mute、speaker Mute, ON/OFF Video: ZOOM+、ZOOM-、up/down/left/right movement、OSD Menu |
|
| Status Display | Two-color LED indicator | |
| Power adapter | DC12V±0.2V, 1A |
